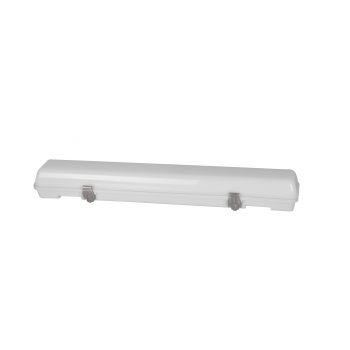

GEN2 DF Series LED Tri-proof Light
.jpg)
Feature:
1. .ies files are available;

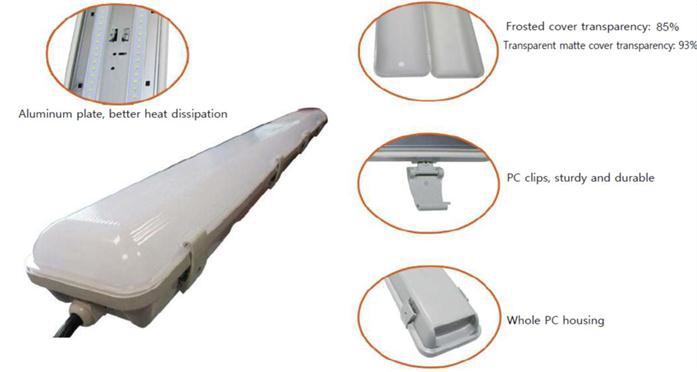

2. Instant on/ off; No UV/ flickering;
3. Environmentally friendly, no UV/infrared, no thermal effect, without toxic substances;
4. Excellent illuminance and uniformity, wider beam angle and no dark space;
5. Adopt whole PC lamp body and high transparency anti-glare PC cover;
6. Aluminum frame, superb for heat dissipation;
7. The driver are UL SAA CCC TUV CB CE listed
8. EM Kits and Sensor available
9. 3year warranty
Parameter:
Packaging:
Part number
Power
Voltage
Color
Cover
Transparency
Efficiency
Lumen
Light size
CRI
PF
TRA06F20W
20w
85-265vac
3000K
4000K
5000K
6000KMilky
85%
100lm/w
2000lm
662*118*80mm
Ra>80
≥0.95
TRA06C20W
Frosted matte
93%
110lm/w
2200lm
TRA12F40W
40w
Milky
85%
100lm/w
4080lm
1272*118*80mm
TRA12C40W
Frosted matte
93%
110lm/w
4400lm
TRA15F60W
60w
Milky
85%
100lm/w
6000lm
1566*118*80mm
TRA15C60W
Frosted matte
93%
110lm/W
6600lm
Item
Packing
Outer carton size(mm)
Outer carton G.W.
Volume weight(kg)
20W LED tri-proof light
1 pcs per inner box,
720*310*300
7.8 kg
13.5 kg
6 inner box per outer carton
40W LED tri-proof light
1 pcs per inner box,
1330*310*300
12.0 kg
25 kg
6 inner box per outer carton
60W LED tri-proof light
1 pcs per inner box,
1630*310*300
14.5 kg
30.5 kg
6 inner box per outer carton
